OEM/ODM カーポート 太陽光パネル アルミ合金 鋼筋
担当者 : Hanna
電話番号 : 86-18702773499
WhatsApp : +8618702773499
最小注文数量 : | 5セット | 価格 : | USD500-1000/set |
---|---|---|---|
パッケージの詳細 : | カートンボックス、木製パレット、ベルトバンドルパッキング、およびその他の種類のパッケージにより、製品の安全性と防水性が保証されます。 | 受渡し時間 : | 15-25の仕事日 |
支払条件 : | L/C、D/A、D/P、T/T、ウェスタン・ユニオン、MoneyGram | 供給の能力 : | 30MW/month |
起源の場所: | 中国 | ブランド名: | TIANFON |
---|---|---|---|
証明: | SGS,ISO 9001,ISO 14001,OHSAS 18000 | モデル番号: | Carportの太陽系 |
詳細情報 |
|||
場所を取付けて下さい: | 地面を開けて下さい | 傾き角度: | 10-60° |
---|---|---|---|
材料: | Al 6005-T5及びSU 304及び熱い電流を通された鋼鉄 | 最高。風速: | 60M/S |
最高。雪の負荷: | 1.4KN/m2 | 据え付け時間: | 7~15working幾日(1MWプロジェクト) |
製品の説明

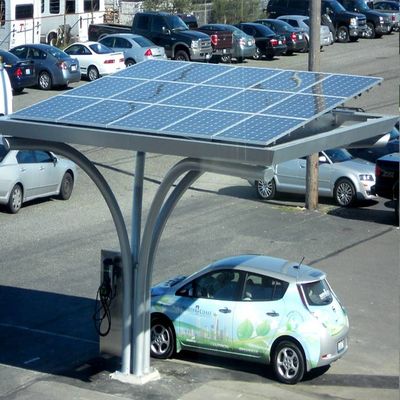

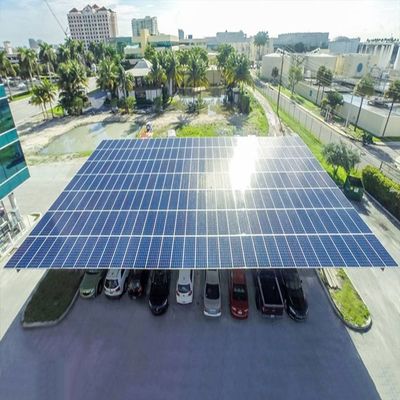

Open Ground PV Garage Canopy Anodized Galvanized Racks Solar Parking Lot, Waterproof Solar Carport Structures
Quick Details:
Application: Private, Government and Enterprise’s Parking Lot
Support system: columns, inclined beams, purlins
Surface Treatment: Hot-Dipped Galvanization or Anodizing
Fastener: Stainless steel SS304
Max Wind Speed: Up to 42m/s
Max Snow Load: Up to 1.4KN/m2
Standard ground clearance: 2500mm
Photovoltaic carports, the easiest way to combine photovoltaics with buildings, and they have become more and more popular in recent years.
They make full use of the original site and provide green energy. The construction of photovoltaic carports in factory parks, business districts, hospitals, schools, etc. can solve the problem of high temperature inside the car in the open-air parking lot in summer.
Solar Carports deliver significant renewable power generation for both onsite use and export to the grid; using a parking area means that additional land and area is not required for energy generation.
It is mainly composed of bracket system, solar panel array, lighting and control inverter system, charging device system and lightning protection and grounding system.
Product Parameter :
Color | Natural or Customized |
Material | Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement. / Q235 hot dip galvanizing Coating over 65um |
Rows | 4/5/6 |
Span(E-W) | 5000mm |
Tilt Angle | 5~15 degree |
Lowest height | 2.5m |
Lowest height | 2.5m |
Width of space | 2.5~3m |
Warranty | 10 years warranty and 25 years duration |
Product Feature:
1. Professional customized design
Products were designed by the experienced designers which have the systematic design, stable structure, mature technology, can reduce the difficulty of the installation on the most conditions.
2. Easy to Install
The pre-assembled design of the highest level in factory simplifies construction site work to the largest degree and therefore installation is simple and quick. It can effectively improve construction efficiency, shorten construction period and reduce construction costs.
3. Safety
The racking systems can stand up to the extreme weather condition. The main support components have also been tested to guarantee its structure and load-carrying capacity.
4. Widely application
The mounting system suitable for various kinds of project, including residential project, commercial project, utility project and so on.
5. Great Compatibility
The Tianfon mounting system compatible with most of the major framed and frameless PV modules on the market.
6. Super quality
All products are made by experienced skilled staffs to operate quality. With strictly full inspected and controlled by Qc department
Application:
Our Certificates:
Packaging & Shipping:
► Package: strong and long distance transportation package
► Place of loading: Basic Seaport, China
► Payment Terms: L/C,D/A,D/P,T/T
► Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits
