OEM/ODM カーポート 太陽光パネル アルミ合金 鋼筋
担当者 : Hanna
電話番号 : 86-18702773499
WhatsApp : +8618702773499
最小注文数量 : | 5セット | 価格 : | USD500-1000/set |
---|---|---|---|
パッケージの詳細 : | カートンボックス、木製パレット、ベルトバンドルパッキング、およびその他の種類のパッケージにより、製品の安全性と防水性が保証されます。 | 受渡し時間 : | 15-25の仕事日 |
支払条件 : | L/C、D/A、D/P、T/T、ウェスタン・ユニオン、MoneyGram | 供給の能力 : | 30MW/month |
起源の場所: | 中国 | ブランド名: | TIANFON |
---|---|---|---|
証明: | SGS,ISO 9001,ISO 14001,OHSAS 18000 | モデル番号: | Carportの太陽系 |
詳細情報 |
|||
名前: | BIPVのCarportの太陽系 | タイプ: | オン/オフ格子 |
---|---|---|---|
表面処理: | 電流を通される、陽極酸化される | 特徴: | 容易で及び速い取付け |
エンジニア リング サービス: | 受諾可能 | 厚さ: | 0.5mm-15mm |
ハイライト: | 3m Width Carport Solar Systems,2.5m Width Carport Solar Systems,ISO 14001 Carport Solar Systems |
製品の説明

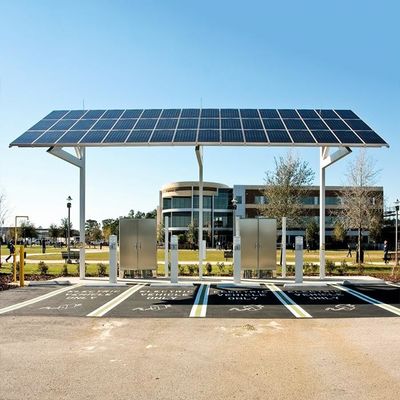

Flexible 5deg-15deg 2.5~3m Width Single Multi Solar Carport
Photovoltaic carport is a new type of power generation method, and it is also a development trend in the future. It is mainly composed of a bracket system, a battery component array, a lighting and control inverter system, a charging device system, and a lightning protection and grounding system.

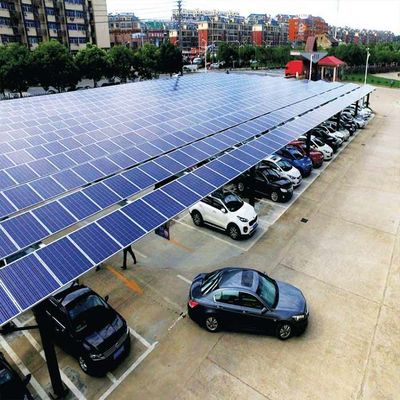

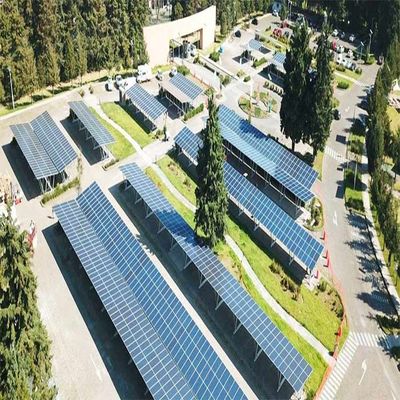

The system adopts a modular design to provide single parking spaces, double parking spaces, and even rows of parking spaces, which are easy to adjust.
The bracket system mainly includes support columns, inclined beams fixed between the support columns, purlins connected to the inclined beams to support the solar cell module array, and fasteners for fixing the battery module array.
Product Parameter :
Installation Angel | 5deg-15deg |
Application | Private, Government and Enterprise’s Parking Lot |
Max Wind Speed | Up to 42m/s |
Max Snow Load | Up to 1.4KN/m2 |
Fastener | Stainless steel SS304 |
Span(E-W) | 5000mm |
Standard ground clearance | 2500mm |
Panel array | Landscape |
Rows | 4/5/6 |
Material: Q235B,Q345B,Component Aluminum Alloy & Stainless Steel etc, Customized upon requirement. / Q235 hot dip galvanizing Coating over 65um
Surface Treatment: Hot-Dipped Galvanization or Anodizing
Lowest height: 2.5m
Width of space: 2.5~3m
Length of space: 6m
Support system: columns, inclined beams, purlins
Benefit:
☀ Flexible and Stable
With the adjustable design, maximally absorbs the size error caused by the construction, and guarantees the stability and beauty of the solar mounting structure.
☀ Superb Quality
All raw materials of components are made of aluminum (anodized 6005-T5) and stainless steel (SUS304), which reach the maximum degree of product's weather resistance and the stability of the structure.
☀ Easy Installation
The pre-assembled design of the highest level in factory simplifies construction site work to the largest degree and therefore installation is simple and quick. It can effectively improve construction efficiency, shorten construction period and reduce construction costs.
☀ Extraordinarily Environment-friendly Performance
All materials can be 100% recycled, and no waste is generated, which fully embodies the concept of energy saving and environmental protection of the solar photovoltaic power generating system.
Installation:
Certification:
Packaging & Shipping:
► Payment Terms: L/C,D/A,D/P,T/T
► Port: Tianjin, Shanghai, Qingdao
► Package: strong and long distance transportation package
► Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits
